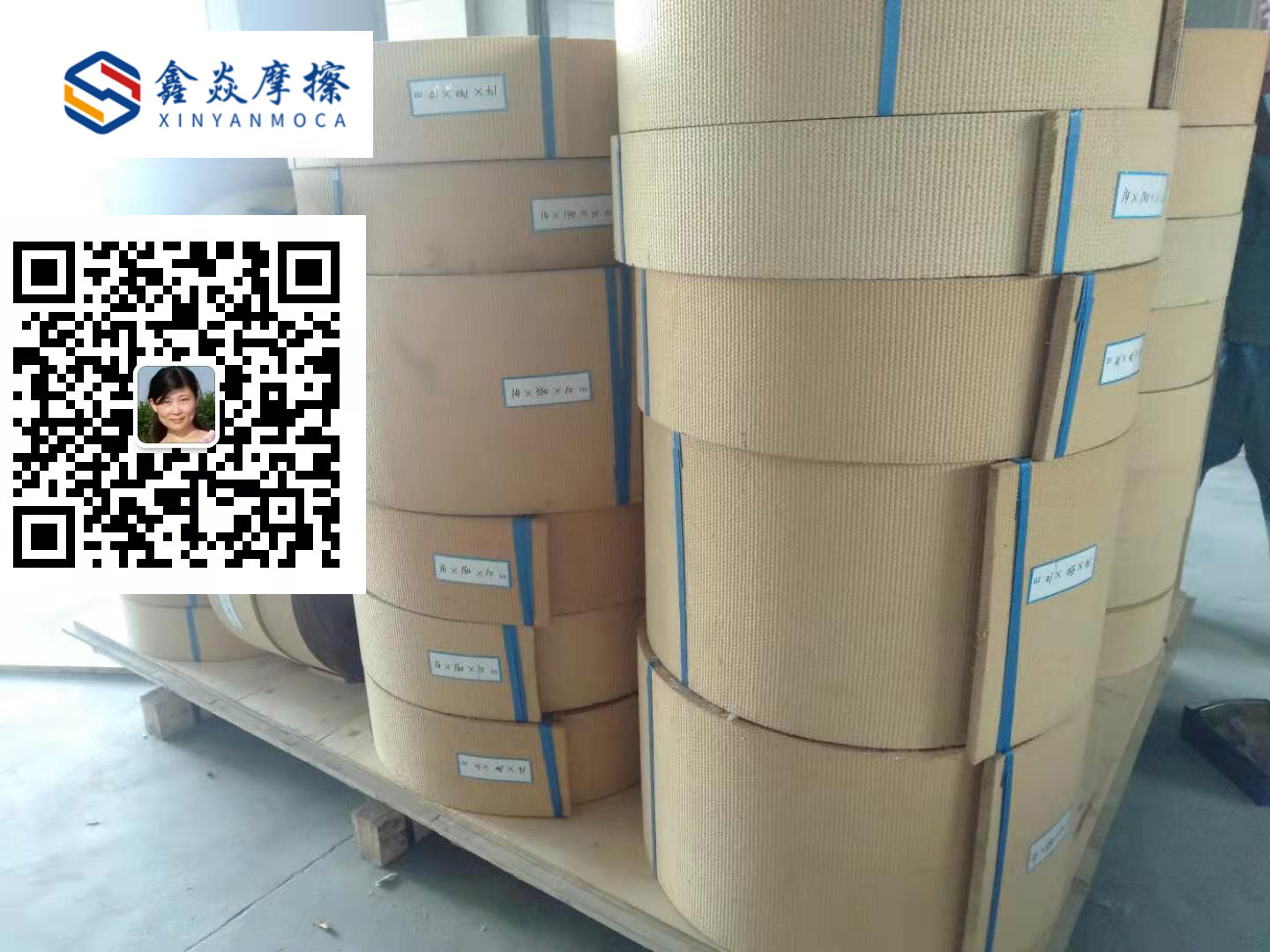

Non-asbestos resin woven anchor windlass brake lining roll ship winch brake belt
Quick Detail:
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
Description:
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.
Applications:
It is widely used for braking deceleration and transmitting power of big power machinery, such as ship winch, dock crane, drilling machinery, lifting machine, building machinery etc.
Specifications:
| Temperature | Coefficient of friction(μ) | Wear rate(v)(cm³/N.m) |
| 100℃ | 0.35~0.65 | ≤0.7 x 10-7 |
| 150℃ | 0.35~0.65 | ≤1.1 x 10-7 |
| 200℃ | 0.30~0.60 | ≤1.5 x 10-7 |
| 250℃ | 0.25~0.60 | ≤2.5 x 10-7 |
Competitive Advantage:
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
| Place of Origin: | China |
| Brand Name: | |
| Certification: | ISO9001,CTI |
| Model Number: | BXS-M |
| Minimum Order Quantity: | 0.5 Tons |
| Price: | Negotiated |
| Packaging Details: | Exporting Standard Pallet |
| Delivery Time: | About 30 working days after down payment |
| Payment Terms: | T/T, 30% Down Payment before production, 70% Balance paid before shipment |
| Supply Ability: | 20 tons/Month |
Product Tags:
|
|
Non-asbestos resin woven anchor windlass brake lining roll ship winch brake belt Images
|
