Brown Anchor Windlass Woven Brake Linings 10 15 20 Meters / Roll

Ningbo Xinyan Friction Materials Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Brown Anchor Windlass Woven Brake Linings 10 15 20 Meters / Roll

  • 1
  • 2
  • 3

Brand Name : DALU

Model Number : BXS-M

Certification : GB/T 19001-2016/ISO 9001:2015

Place of Origin : CHINA

MOQ : 0.5 Tons

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Tons

Delivery Time : 6 weeks after down payment

Packaging Details : exporting wooden case

Product Name : Anchor Windlass Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​

Product Color : Brown

Application : Anchor Windlass Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​

Size : 10, 15, 20 meters/roll

Material : brass wire, resin, viscose,

Type : BXS-M

woven : Anchor Windlass Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​

resin : melamine resin

main raw material : non-asbestos yarns

color : yellow

Contact Now

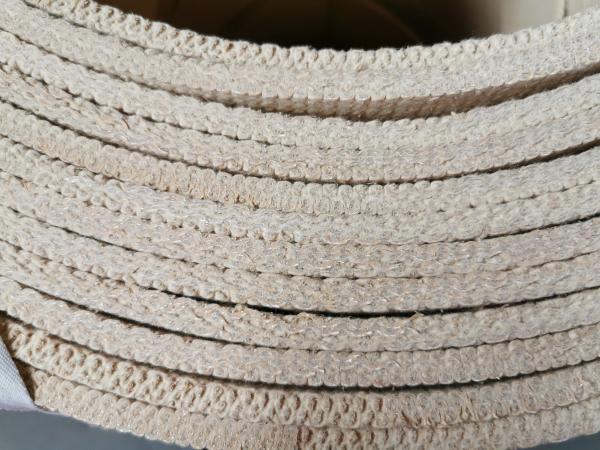

Anchor Windlass Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​

Woven Brake Linings are widely used in decelerating and braking of engineer machines, industry machine and mining machines, such as Winch, Windlass, Tractor, Sugar Mill, Crane,Blender, Power Generator, Construction Machinery, Elevator, Lift, Pickup, Light Truck, etc.

Quick Detail:Anchor Windlass Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Specifications:Anchor Windlass Woven Brake Lining Roll Woven Roll Lining for Tractor Winch Lift​

Company introduction:

We are located in Simen Town, Yuyao City, known as "the source of the famous capital, the hometown of Yangming Wang", with a long history and modern civilization,the factory covers an area of 6,000 square meters with a convenient transportation,.

We are specialized in the production of non-asbestos woven brake lining, brake block, brake plate and other friction materials. We use the good quality raw materials and produce yarns by ourself, and then weave into brake lining by Japanese imported weaving machine and self-developed resin impregnated assembly production line and other advanced equipment and production technology. We have the relevant intellectual property rights and patents developed by ourself.

You can scan the following code and visit our factory on line:

Brown Anchor Windlass Woven Brake Linings 10 15 20 Meters / Roll

Brown Anchor Windlass Woven Brake Linings 10 15 20 Meters / Roll

Brown Anchor Windlass Woven Brake Linings 10 15 20 Meters / RollBrown Anchor Windlass Woven Brake Linings 10 15 20 Meters / Roll

Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.

Please reply me at your earliest convenience, thank you. In case of mail blocking you also could Wechat/Whatsapp me at (86) 13771895935 to get more informations. Thank you.
